K11-RC Conversion Kit for TAMIYA 1/16 Leopard A4


Gear box

Gear box

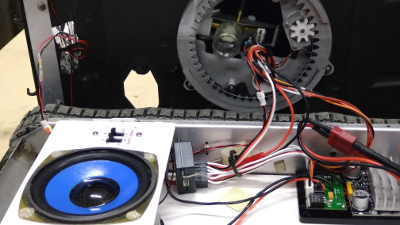

Main control board

Main control board

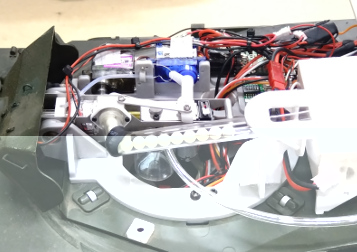

Turret servo assembly

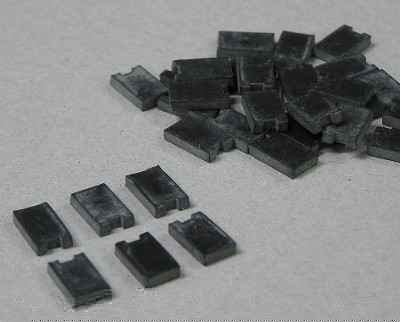

Rubber track pads


K11 - RC Conversion Kit for TAMIYA 1/16 Leopard A4, with MTC-2-BT, ACU and GSU

Price:     US$299

Status:    Out of Stock

Related Product: Rubber Track Pads

- Power by MTC-2-BT and ACU (Version 2.0) and GSU (2 axis gun stabilize unit).- Gearbox with harden stainless steel gears, 380 size motors
- Gearbox fully enclosed, protect against dust and sand particles.
- Gun elevation servo
- Gun recoil servo
- With engine deck sensor, gun rise automatically above engine deck.

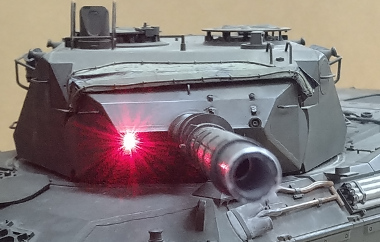

- Ultra bright LED for main gun and machine gun flashes
- Main gun led will explode during recoil
- 22KHz high quality digital recorded sound effects, including diesel engine start, running and stop sounds, main gun and machine gun firing sounds
- Engine sounds changes according to speed

Kit contains:
- Bolt on gear box with 380 carbon brush motors
- Main control board with turret rotation servo, MTC-2-BT
- Speaker with audio amplifier.
- Turret assembly with gun elevation and recoil servos, engine deck sensor, ACU and GSU
- Main gun and machine gun flash LEDs
- Metal parts: hexagonal spacer, turret rollers, recoil spring
- Acrylic parts: A1, A2, A3
- Detail construction manual

Following items are required but NOT included. You must purchase them separately:
- TAMIYA 1/16 Leopard A4 Display Model (Item 36207)
- RC transmitter and receiver (5CH, 4CH or 2 CH)
- 7.2V (6 cell NiMH) or 7.4V (2C Lipo) battery pack
- Rubber track packs (optional)

Manual: RC Conversion Kit for TAMIYA 1/16 LeopardA4 Manual
             MTC-2-BT and ACU Manual V2.1
             GSU Gun Stabilize Unit Manual V1.0

This conversion kit is designed for experienced model maker which may be difficult for beginners. Please read the manual to see if you have the skill and tools required.
