K12 - RC Conversion Kit for TAMIYA 1/35 Challenger 2

Challenger 2

Challenger 2

Gear box

Metal turret ring gear

Workable suspension


LED gun flash

Machine gun flash

Gun barrel


Lower hull



K12 - RC Conversion Kit for TAMIYA 1/35 Challenger 2, with MTC-2, ACU and GSU

without MTC-2, ACU, GSU            US$99
         + MTC-2 and ACU              +US$60
         + GSU                                +US$44
         + Spade Ace Metal Track  +US$30

Status:    Out of Stock

- Constructed by high precision metal parts
- Twin 280 carbon brush motor
- Metal gearbox with harden stainless steel gears
- Workable suspensions
- 360 deg turret rotation
- Gun elevation servo
- Gun recoil servo
- Optional GSU (gun stabilizer unit), with engine deck sensor. Gun rise automatically over engine deck position.
- Ultra bright LED for main gun and machine gun flashes
- Main gun led will expose during recoil
- 22KHz high quality digital recorded sound effects, including turbine engine start, running and stop sounds, main gun and machine gun firing sounds
- Engine sounds changes according to speed
- Powered by 7.4V 2Cell Lipo battery (Lipo battery NOT included and must be purchased separately)

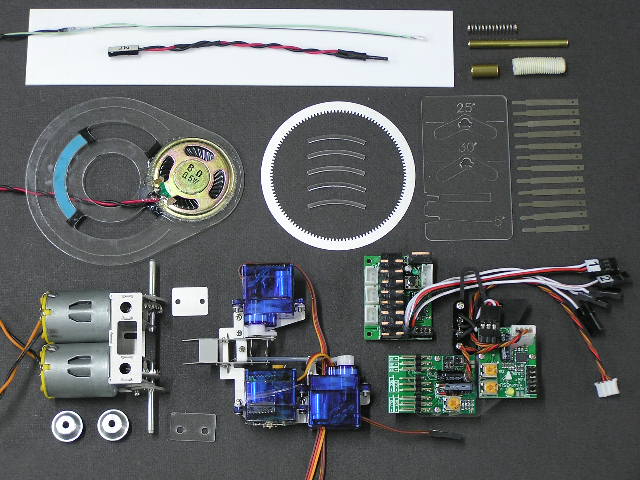

Kit contains:
- Metal gear box with twin 280 carbon brush motors
- Metal sprocket mounts
- Torsion bars set for workable suspension
- Turret rotation, gun elevation and recoil servos
- Main gun and machine gun flash LEDs
- Speaker
- Turrer ring gear
- Metal parts: motor mount, metal gun barrel, torsion bar drill jig
- Acrylic parts: torsion bar alignment tool, ring gear spacer, MTC-2, ACU and GSU mounts
- Gun barrel cover, gun recoil spring, 0.5mm steel wire, 0.5mm pin connectors, 1mm PS plate
- Detail construction manual

Following items are required but NOT included. You must purchase them separately:
- TAMIYA 1/35 Challenger 2 kit
- RC transmitter and receiver (5CH, 4CH or 2 CH)
- 7.4V 2Cell Lipo battery (800-1500mAh) (Attention! Lipo battery can be dangerous if not use
  properly. Follow all safety precautions and use a dedicate Lipo battery charger)

RC Conversion Kit for TAMIYA 1/35 Challenger 2 User Manual
MTC-2 and ACU User Manual
GSU User Manual

Related Product:
- MTC-2 mini tank controller
- ACU auxiliary control unit
- GSU 2 axis gun stabilizer
- Spade Ace Metal Track for Challenger 2

This conversion kit is designed for experienced model maker which may be difficult for beginners. Please read the manual to see if you have the skill and tools required.
