K13 - RC Conversion Kit for Panda 1/16 38(T)

Metal gearbox

Workable leaf spring

Workable leaf spring suspension

Metal track pins

Turret ring gear

Speaker

Main gun assembly

Turret rotation and gun elevation servos

Main gun firing

Machine gun flash LED

Lower hull inside

Turret inside



K13 - RC Conversion Kit for Panda 1/16 38(T), with MTC-2 and ACU

Price: US$199

Status:  Out of Stock

Features:
- Constructed by high precision metal parts
- Twin 180 carbon brush motor
- Metal gearbox with harden stainless steel gears
- Metal track pins
- Workable leaf spring
- 360 deg turret rotation
- Gun elevation servo
- Brass main gun barrel, with gun recoil servo
- Ultra bright LED for main gun and machine gun flashes
- Main gun led will expose during recoil
- 22KHz high quality digital recorded sound effects, including engine start, running and stop sounds, main gun and machine gun firing sounds
- Engine sounds changes according to speed
- Powered by 7.4V 2 Cell Lipo battery (Lipo battery NOT included and must be purchased separately)

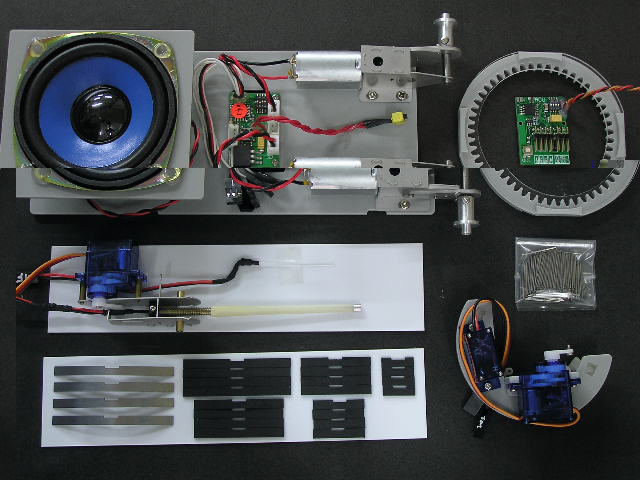

Kit contains:
- MTC-2 mini tank controller
- ACU auxiliary control unit
- Metal gear box with twin 180 carbon brush motors
- 3mm acrylic motor mounting plate
- Metal sprocket mounts
- Workable leaf spring
- Brass main gun barrel with recoil servo and gun flash LED
- Turret rotation motor and gun elevation servo
- Machine gun flash LED
- 3” 5W Speaker
- Turrer ring gear
- Acrylic parts: motor mounting plate, ring gear spacer, ACU mount
- 1mm PS plate
- Detail construction manual

Following items are required but NOT included. You must purchase them separately:
- Panda 1/16 PzKpfw 38(T) kit (Item no: 16001)
- RC transmitter and receiver (4CH or more recommended)
- 7.4V 2Cell Lipo battery (800-1500mAh) (Attention! Lipo battery can be dangerous if not use
  properly. Follow all safety precautions and use a dedicate Lipo battery charger)

Manuals:
RC Conversion Kit for Panda 1/16 38(T) User Manual
MTC-2 and ACU User Manual

Related Product:
- MTC-2 mini tank controller
- ACU auxiliary control unit

Attention:
This conversion kit is designed for experienced model maker which may be difficult for beginners. Please read the manual to see if you have the skill and tools required.
